µFR Multi-Reader C# SDK

C# SDK & Source Code Software Example For Multiple µFR Series Readers Implementation

µFR Multi-reader C# SDK with source code software example is an excellent development tool for developing the NFC RFID solutions for multiple µFR readers connected to a single host. This software tool enables centralized control of readers connected to one host, as well as integration with other systems that require communication with multiple readers at the same time.

Docs & Software Download

Software overview

Software functions:

  • Open/Close All Readers
  • Enable Polling
  • Save Log File
  • Get Count
  • Get Info
  • Open/Close By Index
  • Read Card/Tag Sector
  • Read Card/Tag Block
  • Write Card/Tag Sector
  • Write Card/Tag Block

Available programming languages:

  • C#
  • C
  • Lazarus

Supported operating systems, platforms, and environments:

  • Cross-platform

Supported hardware:

  • µFR Series Devices
multi reader csharp GUI
Software SDK Description
ufr-Lazarus-multi-reader

Example of using multiple µFR readers on the same host.

ufr-multi_readers-example-c_sharp

A software example in C# includes basic functions of using the MULTIPLE µFR Series readers on a single host.

ufr-examples-c-multi_reader_console

Console software example for µFR multi-reader.

Software manual

1. µFR Multi-reader C# – Run Software

Download: ufr-multi_readers-example-c_sharp

Download and extract the SDK software pack. Navigate to the software Release folder in the subfolder with the name of your OS architecture (e.g. binx86Release). Run the uFR_multiDLL_tester.exe file.

multi reader csharp

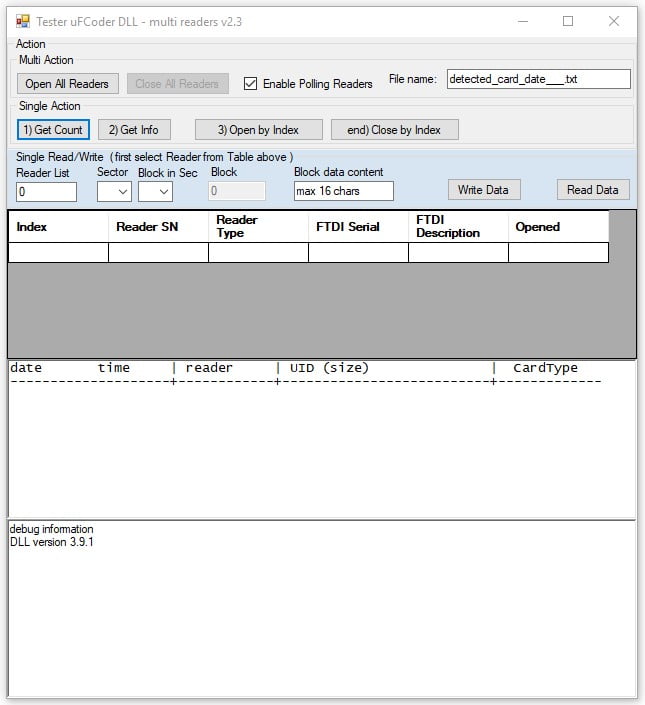

If you have installed your hardware drivers properly, the software will run the graphic interface.

multi reader csharp GUI 550x400 1

2. µFR Multi-reader C# – Open All Readers

Click the Open All Readers to establish communication with all the uFR devices connected to your host.

If the connection failed, check the FTDI drivers installation.

multi reader csharp open all readers
multi reader csharp all opened

2. µFR Multi-reader C# – Enable Polling Function

To enable/disable data polling, select or deselect the check box on the top of the software interface.

multi reader csharp polling

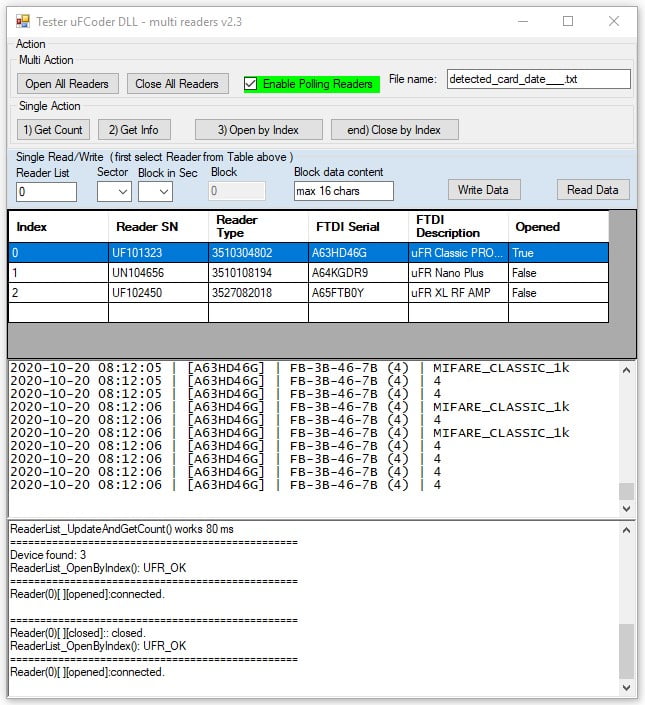

If the polling option is enabled, this will cause the constant reading of any card in the readers’ reading field, as well as its log recording.

multi reader csharp polling list

4. µFR Multi-reader C# – Log File

The software stores all reading data into the log file. The initial file name is displayed at the top of the screen. After the first card is read, the software automatically generates the file in the executable software folder.

multi reader csharp log file

4.1 µFR Multi-reader C# – Rename Log File

The log file name is editable. Each time you edit the File Name field, the software will generate a new log file.

multi reader csharp file rename

EXAMPLE

The screenshot below shows the new log file created after editing the default file name.

multi reader csharp new file

4.2 µFR Multi-reader C# – Log File Content

When the polling function is enabled, the log file will record all the cards/tags instantly.

multi reader csharp logs

5. µFR Multi-reader C# – Get Count Function

Click the Get Count button to count all the µFR readers connected to the host.

multi reader csharp get count

6. µFR Multi-reader C# – Get Info function

Click the Get Info button to display all connected µFR device details.

multi reader csharp new get info

7. µFR Multi-reader C# – Close All Readers

Click the Close All Readers button to terminate the communication with all connected µFR devices.

multi reader csharp close all

8. µFR Multi-reader C# – Open By Index

To establish the communication with the connected readers selectively, select the desired reader index from the list and click the Open By Index button. Repeat the steps for all the readers that you want to enable. After enabling the communication by the reader index, the status of all opened readers will be set to True, while the rest of the readers will remain False status.

After enabling the communication by the reader index, the status of all opened readers will be set to True, while the rest of the readers will remain False status.

multi reader csharp open by

EXAMPLE

The screenshot shows an example of opening the readers with index 0 and 2, while the reader with index 1 is still closed.

multi reader csharp index open

9 µFR Multi-reader C# – Close By Index

To disable the communication with the opened readers selectively, select the desired reader index from the list and click the Close By Index button. Repeat the steps for all the readers that you want to disable. After disabling the communication by the reader index, the status of the disconnected readers will be set to False.

After enabling the communication by the reader index, the status of all opened readers will be set to True, while the rest of the readers will remain False status.

multi reader csharp close index

10. µFR Multi-reader C# – Read Function

Use the Sector Reading option or the Block Reading option to read the cards/tags.

Note: This C# software example supports MIFARE® and other compliant cards/tags with a memory structure organized by 16 sectors and 4 blocks. If your project uses the cards/tags with some other memory structure, you can use this software SDK to customize the reading and writing functions.

multi reader csharp read

10.1 µFR Multi-reader C# – Sector Reading Function

To read a specific sector of the card,  follow these steps:

  • Select the reader index
  • Select the desired sector index
  • Click the Read Data button.

The software info bar will display the content of the selected sector.

multi reader csharp read sector

10.2 µFR Multi-reader C# – BlockReading Function

To read a specific block of the card,  follow these steps:

  • Select the reader index
  • Select the desired block index
  • Click the Read Data button.

The software info bar will display the content of the selected block.

multi reader csharp read block contzent

11. µFR Multi-reader C# – Write Function

Use the Sector Writing option or the Writing Reading option to write the content into the cards/tags.

Note: This C# software example supports MIFARE® and other compliant cards/tags with a memory structure organized by 16 sectors and 4 blocks. If your project uses the cards/tags with some other memory structure, you can use this software SDK to customize the reading and writing functions.

multi reader csharp write s b

11.1 µFR Multi-reader C# – Block Writing Function

To write data into the card,  follow these steps:

  • Select the reader index
  • Select the desired sector index
  • Select the desired block
  • Enter the new data into the Block Data Content field
  • Click the Read Data button.

Note: The defined data length is 16-bytes, so you may enter no more than 16 characters. If you need to write a larger content, split your data into more sectors and blocks. For more complex data writing, you may also consider using some of our other excellent SDK software solutions for linear writing. Please, check our GitLab repository.

multi reader csharp write

11.2 µFR Multi-reader C# – BlockReading Function

To read a specific block of the card,  follow these steps:

  • Select the reader index
  • Select the desired block index
  • Click the Read Data button.

The software info bar will display the content of the selected block.1

multi reader csharp write

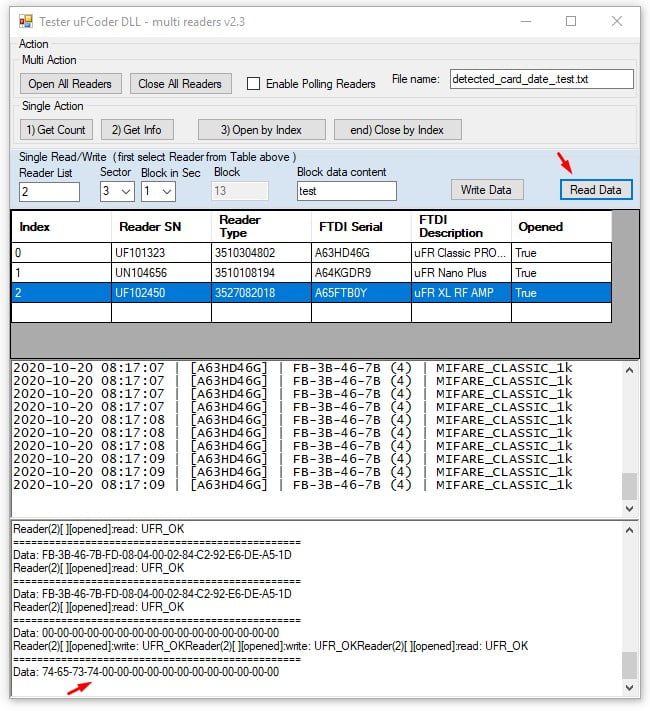

Check the new entry by reading the selected card block. The software info bar will display the HEX data content.

multi reader csharp check write

This manual presents the simple multi-reader source code software in the C# programming language. Software examples with the presented functions are also available in C and Lazarus. All software packages include source code SDK.
