NFC RFID Reader Writer Tools & FREE SDK (Software Development Kit)

Digital Logic Ltd. Product Line

D-Logic RFID NFC Reader/Writer tools are primarily designed for software developers and system integrators. Our RFID NFC devices and  RFID NFC Reader SDK are fully featured tool for a new system’s development, such as:

  • Digital Signing (RSA, ECDSA), used for document signing, transactions signing, cryptocurrencies, etc
  • Cashless payment. e-kiosks, vending machines, cafeterias
  • Industry automation
  • High-security access control (DES, 3DES and AES encryption, PKI infrastructure)
  • Bus ticketing. Bus fare collection, monthly tickets
  • Hotel systems. Room management, room access, room power supply management
  • Parking systems
  • Time Attendance
  • Customer loyalty
  • NFC tag programming (NDEF, URL, vCard, SMS, Call, WiFi connect)

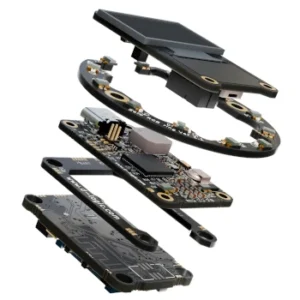

new products Modular Multi-Protocol NFC RFID R/W – µFR Zero Series


ufr zero series modular nfc readers
  • Advanced Modular NFC RFID Readers Writers
  • Dynamic Power Control, Low Power Card Detection, Anti-collision
  • HF 13.56MHz contactless NFC RFID technology
  • Supported standards:
    • ISO 14443 A/B
    • ISO18092
    • ISO15693
    • ISO7816
    • Extended APDU

Read More…

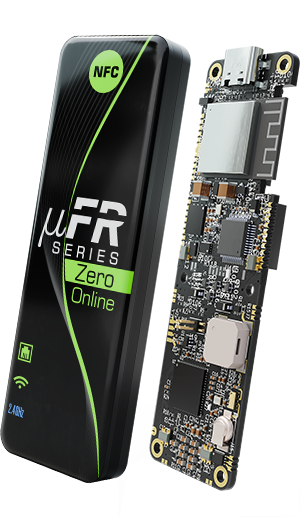

new products Modular Network Multi-ISO R/W -µFR Zero Online Series

uFR Zero Online Series 300px

  • Multi-ISO Network NFC RFID Reader Writer with modular design
  • HF 13.56MHz contactless NFC RFID technology
  • Interface Support: USB (CDC, HID, NCP), UART, SPI, Wi-Fi, BLE, Ethernet, GPIO
  • Supported standards:
    • ISO 14443 A/B
    • ISO18092
    • ISO15693
    • ISO7816
    • Extended APDU
  • Advanced Features: Anti-collision, Dynamic Power Control, Low Power Card Detection, Battery Charger

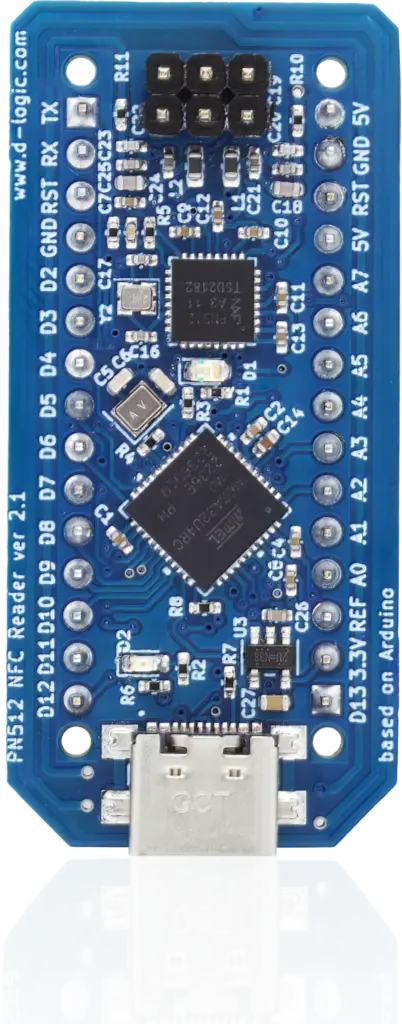

Arduino-based NFC Reader module – DL512

DL512-NFC-Reader

  • Pin-to-pin compatible with Arduino Nano
  • Integrates MCU (ATmega32U) and NFC IC (PN512) in a single board
  • HF 13.56MHz contactless NFC RFID technology
  • Supported standards:
    • ISO 14443 A/B
    • ISO18092
  • Main Features: Keyboard emulation, NFC emulation, APDU

Read More…

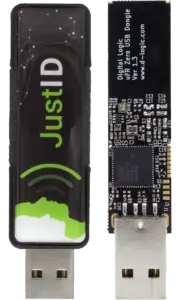

NFC Keyboard Emulator (HID) – JustID

JID-Combined

  • Plug&Play Keyboard Emulation NFC Device
  • HF 13.56MHz contactless NFC RFID technology
  • Interface Support:
    • HID (Human Interface Device)
    • CDC ACM (USB communication device class – Virtual COM Port)
  • Supported standards:
    • ISOO14443 A/B
    • ISO15693
  • Main features: Reads NFC tag serial number (UID) and performs keyboard emulation.
[restart_callout bgcolor=”#ffffff” textcolor=”#494949″ buttontext=”BUY NOW” url=”https://webshop.d-logic.com/” buttoncolor=”color-3″ target=”_blank”]Get the best NFC RFID Reader Writer Tools right away![/restart_callout]

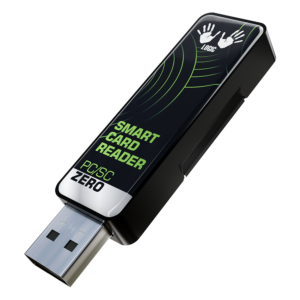

PC/SC NFC Reader – PC/SC Zero

Zero Dongle PC/SC Zero

  • The PC/SC Zero is a compact, versatile, contactless PCSC Smart Card Reader/Writer communicating at 13.56 MHz
  • Featuring a USB CCID interface, the PC/SC Zero ensures true plug-and-play functionality across multiple platforms and operating systems
  • Sub-models of the PC/SC Zero offer a smooth step-by-step upgrade by loading its firmware upgrade:
    • Lite:  ISO14443A/B standard support
    • Basic: ISO14443A/B & ISO15693 standards support
  • Several variants of different designs are available, including OEM modules

NFC Reader – DL533R USB Dongle


  • The PR5331C3HN is a highly integrated transceiver module for contactless PCSC Smart Card Reader/Writer communication at 13.56 MHz
  • The protocol between the host controller and the PR5331C3HN, on top of this physical link, is the CCID protocol
  • Small portable USB device

LibNFC NFC Reader – DL533N CS

LibNFC NFC Reader – DL533N CS

  • The DL533N CS NFC RFID reader writer with PN533 enables the reading and writing of NFC cards and tags as well as NFC P2P communication
  • The device is produced by Digital Logic LTD. It is built upon the NXP PN533 chip according to manufacturers’ recommendations and guidelines
  • NXP PN533 supports the full range of the NFC Forum specifications and standards

LibNFC Reader – DL533N USB Dongle

NFC Reader – DL533N USB Dongle

  • NFC reader builds upon the NXP PN533 NFC chip according to manufacturers’ recommendations and guidelines
  • Full NFC forum compliant NFC reader and LibNFC compatible device
  • A large libNFC community is a good starting point for further development
  • Compact NFC hardware is ideal for users looking for basic portable devices

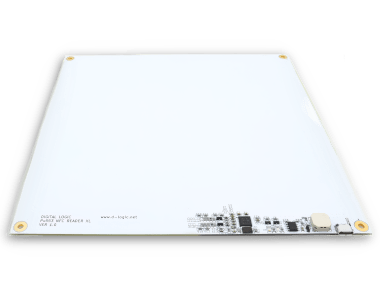

LibNFC Reader – DL533N USB XL
  • NFC reader based on the NXP PN533 NFC chip
  • NFC forum compliant – LibNFC compatible
  • libNFC community projects available
  • Extra-large NFC hardware, suitable for demanding systems integration

NFC Reader Accessories


  • Raspberry Pi Shield for uFR Series NFC Readers
  • RS232 to TTL UART converter
  • RS485 to USB converter
  • RGB LED Ring (NFC friendly)
  • RGB LED modules

Power Bridge for Android – PBA


  • Charge your Android device and communicate with the uFR Series NFC reader at the same time over the same micro USB port
  • Many different APB models are available depending on the necessary connection types
  • Product customization is available
